Charges API

The Charges API lets you build your own checkout and have Beam process the payment. You control the interface, so you decide what the shopper sees at every step.

The following operations are available:

Create Charge (POST /api/v1/charges): start a payment.
Get Charge by ID (GET /api/v1/charges/{chargeId}): read the current status of one charge.
List Charges (GET /api/v1/charges): list past charges, with filters.

A charge cannot be edited or deleted after it is created. To reverse a successful charge, create a refund.

Note

POST /api/v1/charges is not the only call that creates a charge. Capturing a card authorization creates one too, and returns its chargeId. Those charges also have source API, and you read and track them with the same endpoints on this page.

This page covers the request and response shapes. For the concepts behind them, see Charges: the charge flow, the available payment methods, the lifecycle and statuses, and how to track the outcome. For the full schema, see the Charges API Specification. For a walkthrough of a first payment, see the Integration Guide.

Create a charge

The amount field is in the smallest currency unit. For Thai Baht (THB) that is satang, so 10000 means 100.00 THB. For how to build the Authorization header, see Authentication.

Card charge


POST https://api.beamcheckout.com/api/v1/charges
Content-Type: application/json
Authorization: Basic <base64(merchantId:apiKey)>

{
  "amount": 10000,
  "currency": "THB",
  "paymentMethod": {
    "card": {
      "cardHolderName": "CARDHOLDER NAME",
      "expiryMonth": 12,
      "expiryYear": 30,
      "pan": "4111111111111111",
      "securityCode": "123"
    },
    "paymentMethodType": "CARD"
  },
  "referenceId": "order_190821",
  "returnUrl": "https://www.beamcheckout.com",
  "skip3dsFlow": false
}

If Beam has enabled 3DS bypass for your account, set skip3dsFlow to true to skip 3DS. This works on the card payment methods: CARD, CARD_INSTALLMENTS, CARD_TOKEN, and CARD_TOKEN_INSTALLMENTS. See Bypassing 3DS.

Tip

Sending raw card numbers to your own server brings it into PCI DSS scope. Use Card Tokenization to exchange card details for a token in the shopper’s browser, then charge the token with CARD_TOKEN.

QR PromptPay charge

This same request is also how shoppers pay with Alipay. The shopper scans the returned QR code from inside their Alipay app to complete payment.


POST https://api.beamcheckout.com/api/v1/charges
Content-Type: application/json
Authorization: Basic <base64(merchantId:apiKey)>

{
  "amount": 10000,
  "currency": "THB",
  "paymentMethod": {
    "qrPromptPay": {
      "expiryTime": "2023-12-31T23:59:59Z"
    },
    "paymentMethodType": "QR_PROMPT_PAY"
  },
  "referenceId": "order_190822",
  "returnUrl": "https://www.beamcheckout.com",
  "skip3dsFlow": false
}

Mobile banking charge

The example below uses Krungsri App. Swap paymentMethodType and its object for the app you want.


POST https://api.beamcheckout.com/api/v1/charges
Content-Type: application/json
Authorization: Basic <base64(merchantId:apiKey)>

{
  "amount": 10000,
  "currency": "THB",
  "paymentMethod": {
    "krungsri": {},
    "paymentMethodType": "KRUNGSRI_APP"
  },
  "deviceType": "ANDROID",
  "referenceId": "order_190823",
  "returnUrl": "https://www.beamcheckout.com"
}

Each app has its own paymentMethodType and its own object, which is empty:

App	`paymentMethodType`	Object
Krungsri App	`KRUNGSRI_APP`	`"krungsri": {}`
Bangkok Bank App	`BANGKOK_BANK_APP`	`"bbl": {}`
KPlus	`KPLUS`	`"kPlus": {}`
Make	`MAKE`	`"make": {}`
SCB Easy	`SCB_EASY`	`"scbEasy": {}`

Note

Mobile banking apps need a mobile device, so send deviceType as ANDROID or IOS. If you leave it out it defaults to WEB, and the payment is unlikely to complete.

Optional fields

deviceType: the shopper’s device, one of ANDROID, IOS, or WEB. Defaults to WEB. Send the accurate value, because it raises the chance of the payment completing, and the mobile banking apps need a mobile device.
referenceId: your own order reference. You can filter charges by it later.
customer.billingAddress: the billing address for a card charge. Optional, but recommended, because card issuers check it (for example, AVS), so a full address raises approval rates.

For every field, see CreateChargeRequest.

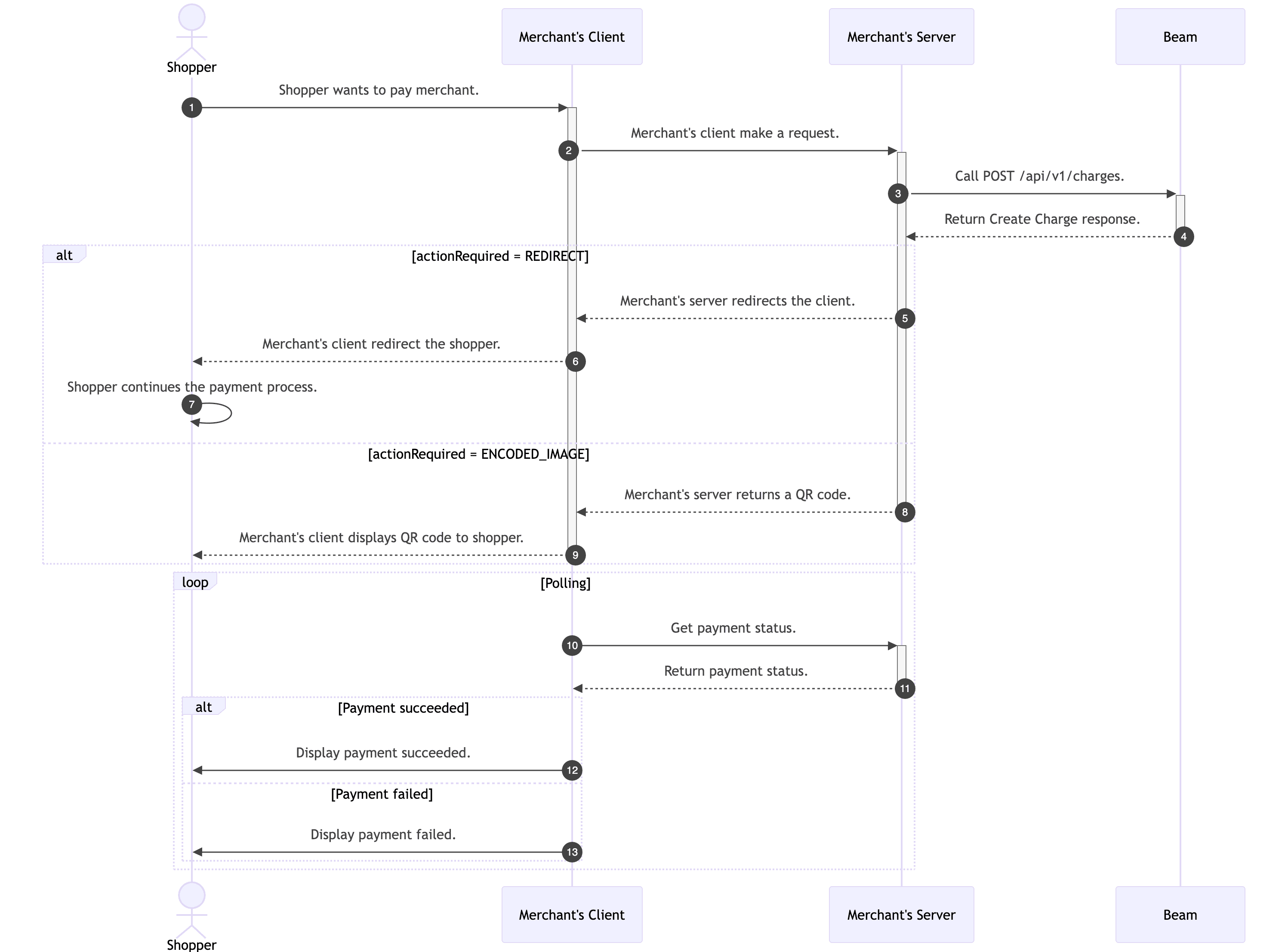

Handle the charge creation response

The charge is created as soon as the call succeeds, but some payment methods need one more step from the shopper. The actionRequired field tells you which:

`actionRequired`	What it means	What you do
`NONE`	Nothing more is needed from the shopper.	Wait for the charge to reach a final status.
`REDIRECT`	The shopper has to finish the payment on another page. The URL is in the `redirect` object.	Send the shopper to `redirect.redirectUrl`.
`ENCODED_IMAGE`	The shopper has to scan a QR code. The image is in the `encodedImage` object.	Decode `imageBase64Encoded` and show the image to the shopper.

No action required


{
  "actionRequired": "NONE",
  "chargeId": "ch_2xTsz7Qit55pahSvKfJG3UMkpFQ",
  "paymentMethodType": "CARD"
}

Redirect required


{
  "actionRequired": "REDIRECT",
  "chargeId": "ch_2xTsz7Qit55pahSvKfJG3UMkpFQ",
  "redirect": {
    "redirectUrl": "https://www.beamcheckout.com/redirect"
  },
  "paymentMethodType": "CARD"
}

Encoded image required


{
  "actionRequired": "ENCODED_IMAGE",
  "chargeId": "ch_2xTsz7Qit55pahSvKfJG3UMkpFQ",
  "encodedImage": {
    "expiry": "2025-08-24T14:15:22Z",
    "imageBase64Encoded": "iVBORw0KGgoAAAANSUhEUgAAAQAAAAEAAQMAAABmvDolAAAABlBMVEX///8AAABVwtN+AAABXUlEQVR42uyYsbHzIBCEjyEgpASVQmsujVJUAiGBhv1nD5iR/VvvxY9jAwfyF91wuwuytbW19ZOgunwNNZRY4nn0L6+1gMYff/kqoUYQOPklmQMcx3SJBNRYYpGDo8pWAQ8QEDEOcE4iETgXBfpeEAgo8rg4qwNG3P5XYMijhqoH5iEdVweaQ/MAjbJK7HmRcsJrLQBA0zSoA9CtyG8tyALQXHPqk1VENBXf/7cCCAGuBWsSfVKOMwHZGuDQel0MNQAoBy0i3XJzDUCcpgETgDZY2A6y3PzBCOBaR1iTtA2qP9zPgw1A66L4a9ZFfBqlEUBmXeTeFEWQ74NaCGALojn0WDyQkzngrRWL3g4IPNTmdYH5SMJc5HkZg7IHzFvzqIu6ON8ei5YA+ptYib0eyP9zMAN0myxHN8qPvDAAjLyYgTHqolgDpk/SHxTQ4/LlFeVvA1tbWxb1LwAA//8XPln5fRCHxAAAAABJRU5ErkJggg==",
    "rawData": "Sample QR Code for payment"
  },
  "paymentMethodType": "QR_PROMPT_PAY"
}

Get a charge

Use the chargeId from the creation response to read one charge:


GET https://api.beamcheckout.com/api/v1/charges/{chargeId}
Authorization: Basic <base64(merchantId:apiKey)>

The response holds the current status, and failureCode when the charge failed. See Charge failure codes.

Polling this endpoint is the fallback way to learn the outcome. Webhooks are the recommended way, so see Track the charge before you build a polling loop.

List charges

GET /api/v1/charges lists the charges on your merchant account, most recent first. Query parameters filter the results: referenceId, source_in, sourceId, plus offset and limit for paging.

To find the charges for one payment link, filter by source_in=PAYMENT_LINK and sourceId={paymentLinkId}:


GET https://api.beamcheckout.com/api/v1/charges?source_in=PAYMENT_LINK&sourceId={paymentLinkId}
Authorization: Basic <base64(merchantId:apiKey)>

A payment link can have several charge attempts. The link is paid only when one of its charges has status SUCCEEDED.

To find the charges for one card authorization, use the authorization’s own endpoint:


GET https://api.beamcheckout.com/api/v1/card-authorizations/{cardAuthorizationId}/charges
Authorization: Basic <base64(merchantId:apiKey)>

A card authorization can have several charges, one per capture. See Capture API.

Errors

A failed payment still returns HTTP 2xx, because Beam accepted your request. HTTP 4xx and 5xx responses mean the request itself was rejected. See Error Handling, and use idempotency keys so a retried create call cannot charge the shopper twice.
