Bolt Intent API

This section will walk you through the Bolt Intent API to complete your payment flow, including

Create Bolt Intent to initiate a payment request
Get Bolt Intent to inquire the status of the payment
Cancel Bolt Intent to cancel a payment request

You can see the API reference for Bolt Intent at Bolt API Specification.

Create Bolt Intent

You can create a Bolt Intent with Create Bolt Intent API.

For Paired Mode, to send a Bolt Intent request to the connected device, you need to specify

mode.type = PAIRING
boltConnectionId that refers to the connection

For Deep Link Mode, to create a deep link URL to redirect your application to Beam Bolt app for payment processing, you need to specify

mode.type = DEEP_LINK
mode.deepLink.redirectUrl to redirect back to your application after payment processing

The following payment methods are supported on the Beam Bolt Intent API:

Card (CARD)
Card Installments (CARD_INSTALLMENTS)
QR PromptPay (QR_PROMPT_PAY)
Alipay (ALIPAY)
Alipay Plus (ALIPAY_PLUS)
Line Pay (LINE_PAY)
Shopee Pay (SHOPEE_PAY)
TrueMoney (TRUE_MONEY)
WeChat Pay (WECHAT_PAY)
SPayLater (SPAY_LATER)

Note

Available Bolt payment methods are not the same as those supported in Charges API. This is indicated in BoltPaymentMethodType and OnlinePaymentMethodType enum respectively in the API Reference.

Tip

We STRONGLY recommend that you set the Bolt Intent expiry duration so that in the case of a long-process payment, both you and Beam Bolt device would not wait for the payment result indefinitely.

If you create Bolt Intent while Beam Bolt is not in “Ready to accept payments” screen, the payment request will be discarded. Therefore, we recommend that you wait for 5 seconds after Bolt is connected or Bolt Intent is canceled or expired before you create a Bolt Intent.

Bolt Ready to accept payments.png

Handle Bolt Intent

After you successfully create a Bolt Intent, track payment status by polling Get Bolt Intent API with boltIntentId until the result field is not empty, then act according to its value.

There are fields in Bolt Intent that indicate the latest Charge on it, namely latestChargeId, latestChargeStatus and latestChargeFailureCode. You can read more details about them in Get Charge API.

Bolt Intent also contains result field indicating the payment outcome:

`result`	Meaning	Recommended action
(empty)	No Charge yet, or latest Charge is still pending	Continue polling
`CH_SUCCEEDED`	Latest Charge succeeded	Mark order as succeeded
`CH_PROCESSING_FAILED`	Latest Charge failed — processing error	Mark order as failed
`CH_INSUFFICIENT_FUNDS`	Latest Charge failed — insufficient funds	Mark order as failed
`CH_AUTHENTICATION_FAILED`	Latest Charge failed — authentication error	Mark order as failed
`BI_EXPIRED`	Bolt Intent expired	Mark order as expired
`BI_CANCELED`	Bolt Intent was canceled	Mark order as canceled

Warning

A Charge created just before expiry or cancellation could still succeed after the Bolt Intent transitions to BI_EXPIRED or BI_CANCELED. If this happens, refund the Charge manually from Lighthouse to avoid capturing funds for an expired or canceled order.

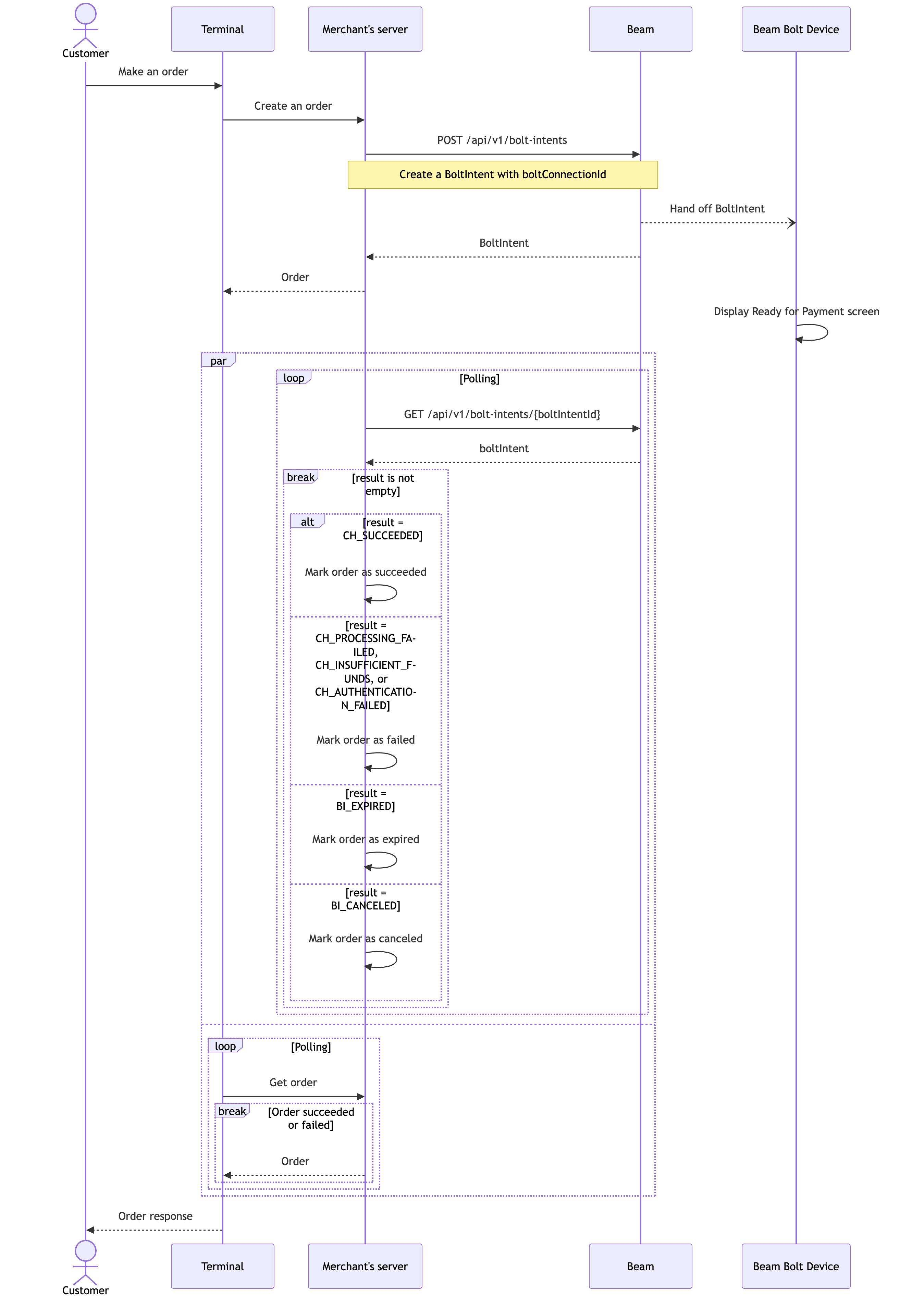

Here is an example on how to accept customer’s payment after connected to Beam Bolt successfully:

Accept payment with Beam Bolt

Get Bolt Intent via API

You can use the boltIntentId in the Bolt Intent creation response above in the Get Bolt Intent API (GET /api/v1/bolt-intents/{boltIntentId}) to retrieve the details of a specific Bolt Intent by its ID.

Cancel Bolt Intent

You can set Bolt Intent’s expiry on its creation, or cancel it with Cancel Bolt Intent API.
